Draw Smooth Curve from Series of Points - Discussion

[Gary Beene]

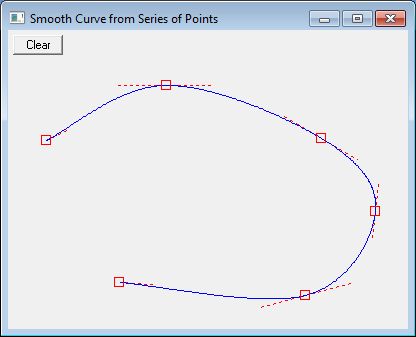

This thread is to discuss the code I just posted, showing how to create a smooth curve by connecting points using a series of Bezier curves. It was posted in the Source Code forum, here.

In the code, you just click to create points. Once 4 points are generated, the smooth curve is built. Additional clicks generate additional segments to the curve.




As with the other Bezier code I posted, credit goes to Rod Stephens, whose code was the basis for the code I've posted.

Comments and questions are welcome!

[Gary Beene]

Hey Frank!
Nice work! Was your original code points, to which you applied the Bezier curve code?

[Gary Beene]

Frank,
So, your idea of generating/moving points (gravity manipulated in your example) is very straight forward. Based on that idea, I wrote the code below, where I have just 20 points which are randomly moved around - connecting all the points (plus first to last) with the Bezier cure code I posted earlier and that you used in your demo.

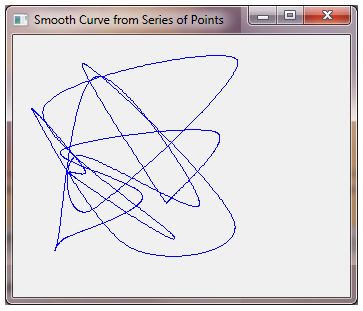

I like what you did. My own example (picture below) was pretty weak, but it shows how easily you can plop in an algorithm of your choice - just drop in a single function (MovePoints - which both initializes and moves points) and you can get an entirely new look!

Very cool. Thanks for sharing the idea.

In this compilable example, I used the updated/simplified DrawBezier function that I posted with in the Source forum.

'Compilable Example:
#Compiler PBWin 10
#Compile Exe
#Dim All
%Unicode = 1
#Include "Win32API.inc"

%IDC_Graphic = 500
%ID_Timer    = 501

Global hDlg As Dword, P() As Point, pCount As Long

Function PBMain() As Long
   Dialog New Pixels, 0, "Smooth Curve from Series of Points",300,300,400,400, %WS_OverlappedWindow To hDlg
   Control Add Graphic, hDlg, %IDC_Graphic, "", 0, 0, 400,400, %SS_Notify
   Graphic Attach hDlg, %IDC_Graphic, ReDraw
   Dialog Show Modal hDlg Call DlgProc
End Function

CallBack Function DlgProc() As Long
   Select Case Cb.Msg
      Case %WM_InitDialog
         Randomize Timer
         MovePoints(1)     'initialize points
         SetTimer hDlg, %ID_Timer, 20, 0
      Case %WM_Command
         Select Case Cb.Ctl
            Case %IDC_Graphic
               KillTimer hDlg, %ID_Timer
               MovePoints(1)  'initialize points
               SetTimer hDlg, %ID_Timer, 20, 0
         End Select
      Case %WM_Timer
         MovePoints(0)     'non-zero means change all point locations
         DrawCurves 0.01, 0.5
   End Select
End Function

Sub MovePoints(Initialize As  Long)
   Local i As Long
   If Initialize Then
      'initialize points
      pCount = 20 : ReDim P(19)
      For i = 0 To 18 : P(i).x = Rnd(100,300) : P(i).y = Rnd(100,300) : Next i : P(19) = P(0)
   Else
      'move points
      For i = 0 To 18
         P(i).x += Rnd(-1,1) : P(i).y += Rnd(-1,1)
      Next i
      P(19) = P(0)
   End If
End Sub

Sub DrawBezier(ByVal dt As Single, pt0 As Point, pt1 As Point, pt2 As Point, pt3 As Point)
    Local t,x0,y0,x1,y1 As Single
    t = 0
    x1 = pt0.x * (1 - t) ^ 3  + pt1.x * 3 * t * (1 - t) ^ 2 + pt2.x * 3 * t ^ 2 * (1 - t) + pt3.x * t ^ 3
    y1 = pt0.y * (1 - t) ^ 3  + pt1.y * 3 * t * (1 - t) ^ 2 + pt2.y * 3 * t ^ 2 * (1 - t) + pt3.y * t ^ 3
    t = t + dt
    Do While t < 1
        x0 = x1 : y0 = y1
        x1 = pt0.x * (1 - t) ^ 3  + pt1.x * 3 * t * (1 - t) ^ 2 + pt2.x * 3 * t ^ 2 * (1 - t) + pt3.x * t ^ 3
        y1 = pt0.y * (1 - t) ^ 3  + pt1.y * 3 * t * (1 - t) ^ 2 + pt2.y * 3 * t ^ 2 * (1 - t) + pt3.y * t ^ 3
        Graphic Line  (x0, y0)-(x1, y1), %Blue
        t = t + dt
    Loop
    ' Connect to the final point.
    t = 1
    x0 = x1 : y0 = y1 : x1 = pt3.x : y1 = pt3.y
    Graphic Line (x0, y0)-(x1, y1), %Blue
End Sub

Sub DrawCurves(ByVal dt As Single, ByVal tension As Single)
   Local control_scale As Single, i As Integer
   Local pt,pt_before, pt_after, pt_after2, Di, DiPlus1, p1, p2, p3, p4 As Point

   Graphic Clear
    control_scale = CSng(tension / 0.5 * 0.175)
    For i = 0 To UBound(P) - 1
        pt_before = P(Max(i - 1, 0))
        pt = P(i)
        pt_after = P(i + 1)
        pt_after2 = P(Min(i + 2, UBound(P)))

        p1 = P(i)
        p4 = P(i + 1)

        Di.X = pt_after.X - pt_before.X
        Di.Y = pt_after.Y - pt_before.Y
        p2.X = pt.X + control_scale * Di.X
        p2.Y = pt.Y + control_scale * Di.Y

        DiPlus1.X = pt_after2.X - P(i).X
        DiPlus1.Y = pt_after2.Y - P(i).Y
        p3.X = pt_after.X - control_scale * DiPlus1.X
        p3.Y = pt_after.Y - control_scale * DiPlus1.Y

        DrawBezier dt, p1, p2, p3, p4
    Next i
    Graphic ReDraw
End Sub

[José Roca]

See posts #2 and #3 in this thread:

http://www.powerbasic.com/support/pbforums/showthread.php?t=49983

[Gary Beene]

Jose!
Thanks for pointing out the GDIP Bezier posts.

One of the things I'm enjoying is looking at the different options on how to get a graphics results. I especially like it when I've done something the long way, and find out that there's a much more minimal way to do the same thing - as your GDIP code appears to be!

I knew that GDIP had some Bezier and line-smoothing capabilities. But I just hadn't gotten around to looking more closely. But now that you've pointed them out, I'll be giving it a try - in the morning 'cause it's just about midnight here and I'm about to crash for the evening!

Thanks again!

[Gary Beene]

I was playing around again (years later) with the Bezier code and compared the results to Jose's suggested GDI+ approach. I'm generally interested in the best looking results, with anti-aliasing if possible.

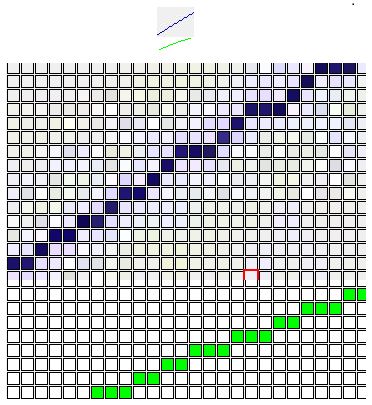

The blue is the manual code and the green is the GDI+ code.

At line width = 1 the manual code gives a much less "smooth" result as compared to the GDI+. At wider lines, it looks some better, as in this image ...



Unfortunately the anti-aliasing code I published recently doesn't support wide lines and I'm not sure how to do it myself. I'll go looking for something existing that I can convert. If anyone has it already, please speak up.

I also need to add antialiasing to the example Jose posted, to see how well GDI handles it.
