  • Do you need to write Graphic oriented apps ? save $70 on EZGUI 4.0 Pro

    EZGUI 4.0 Professional is now on sale
    from July 11, 2008 to July 27, 2008.

    The price is only $179 (US)

    which is a savings of $70.

    For those interested in learning about the advantages of using EZGUI 4.0 pro, here are some long posts on my forum about what makes EZGUI 4.0 Pro different and how it benefits you.

    http://chrisboss.hypermart.net/ubb/F...ML/000109.html (what makes EZGUI different ?)

    http://chrisboss.hypermart.net/ubb/F...ML/000088.html (extensive discussion of the benefits of using EZGUI)

    There are features in EZGUI 4.0 Pro not found in any other GUI tool, so find out what they are.

    For a quick link to the order page click here: http://cwsof.com/order.htm

    EZGUI 4.0 Professional makes development of
    highly graphic applications easy.

    EZGUI 4.0 Pro is the only Visual Designer/Code generator tool which comes with its own advanced Graphic engine.

    EZGUI provides graphics for all sorts of tasks. It is an integrated Graphics engine.

    You could purchase a Visual Designer separately, a Graphics Tool separately, a Print engine separately, but with EZGUI it all comes in one integrated package. When you use separate tools for each task, you have to learn the syntax of each tool and if they come from different vendors they likely will all be quite different in style.

    EZGUI has a single core Graphics engine, which is then accessable to the print engine, Canvas control, DC drawing and Ownerdraw. You learn one syntax and use it over and over again for different drawing devices.

    EZGUI also provides a unique Sprite engine (moveable, non-rectangular images) for use with its Graphic control. Sprites can also be used to draw permanently on the Canvas control, which can then be used to build images for drawing on the printer.

    The Sprite engine provides a very powerful AlphaBlending and Anti_Aliasing engine.

    EZGUI provides both high level and low level graphics features.

    I don't know if any other graphic tools have this feature or not, but EZGUI's Canvas control provides the ability to define its image buffers as DIB sections (16 bit, 24 bit or 32 bit) so you can access the pixel data directly.

    There is a big difference between using a DIB section directly compared to using the GET/SET DIBbits method of accessing pixel data. You don't have to move data to a temporary string buffer, then modify the pixels and then move it back. Accessing the data directly is much faster. Also EZGUI allows you to access data in 16 , 24 or 32 bits, so you are not limited to just 32 bits. This makes it possible to port old DOS Graphic code more easily which may have worked in 16 or 24 bit modes.

    EZGUI's Canvas control is a real window control, designed specifically for Graphics. It supports things like Double Buffers and DIB's.

    Its true there are other tools which support Graphics.

    With EZGUI though, you can sum it up this way:

    Integration !

    EZGUI's Canvas control, Turtle Graphics control, Ownerdraw, DC Drawing, Form background drawing, control background drawing (via subclassing) and Print engine are all integrated.

    Since drawing to a DC is the lowest level of drawing, the Graphic engine command set starts with the DC drawing commands. Then the higher level, Canvas drawing and Printer drawing command sets are built on top of these. OwnerDraw is drawn using the DC versions of the command set. Control or Form background drawing is also done at the DC level.

    Once you learn the basic syntax of the graphic command set, you can apply that to the Canvas control, Printer and even Ownerdraw controls.

    EZGUI even provides building complex regions from a Bitmap (for Forms) or the current image buffer of either the Canvas or Turtle graphic controls. Again this feature is integrated, so it is easy to apply it to a form, Canvas or turtle control.

    The Visual Designer even supports Form regions (based on a Bitmap) Visually. Test your Forms (with regions) visually and see how they will actually look.

    Another integrated feature is the simplified ownerdraw command set. Not only is low level owner draw supported (you can write your own ownerdraw routines using the graphics engine), but there is a high level owner draw command based on this integrated graphic engine.

    Some of the ownerdraw is even supported visually in the designer. You can use 2D and 3D colored buttons in the Designer. You can even create your own button ownerdraw plugins so you can use your own ownerdraw code (your app will use the EZGUI command set source code in an include, but the designer uses a compiled DLL). You can even use the label control for Gradient backgrounds in the designer.

    EZGUI comes with a built in set of simple graphic macros for drawing on the 3D buttons. Here is the Builder dialog in the designer:




    When it comes to a more graphicly oriented application, EZGUI makes it easier than ever..

    You can edit Turtle Graphic macros from within the Designer and test them out so you can see how your Turtle control will look. Save Turtle files and load them in the Designer, so you can reuse images. Turtle images are totally scalable.

    Here is the Turtle builder in the designer:



    Here is the Gradient Builder dialog in the designer for adding a gradient to a ownerdraw label control:



    As I mentioned above, you can visually see how your Forms will look when they use a complex Region (based on a Bitmap background) in test mode.

    Here is the regioned Form in edit more:



    Here is the regioned Form in test mode:



    The Visual Designer supports a number of graphic orientated features found in the runtime GUI engine.

    For controls which can be ownerdrawn (listbox, combobox, etc.), but don't have a Builder dialog, the Designer can also generate the necessary code to get you started. You can be creating ownerdrawn listboxes, Listviews, menus, comboboxes, etc. in no time.

    Using the simplified ownerdraw command set, you will be able to add fancy ownerdraw controls like these in no time:



    Using the more low level ownerdraw command set you can even build customized controls like these two ownerdraw listboxes:




    How about customizing the Common Dialogs ?

    Can you do this using your current tools ?
    Do you know how to do this via the API ?



    Not only can EZGUI do things like center the common dialogs, but it can change the background colors (even use 3D brushes), resize the dialog , add new forms (with controls) to the dialog, process events for those controls and even skin the existing button controls to any customized ownerdraw look you want.

    See the benefits of Integration !

    By having a core Graphics engine built in, it can be used to customize all sorts of aspects of your software.

    No other tool for PowerBasic has such an integrated Graphics engine which can be used for so many different things.

    Sure some tools may be able to do some of the things above. But EZGUI is integrated so you can combine all sorts of features together in one app.

    Now you can purchase EZGUI 4.0 Pro and save $70 (US).

    That is a 28% savings on the retail price.
    Last edited by Chris Boss; 21 Jul 2008, 09:56 AM.
    Chris Boss
    Computer Workshop
    Developer of "EZGUI"
    http://cwsof.com
    http://twitter.com/EZGUIProGuy

  • #2
    Some more Graphic features:

    The Drag and Drop engine in EZGUI allows you to build WYSIWYG type applications.

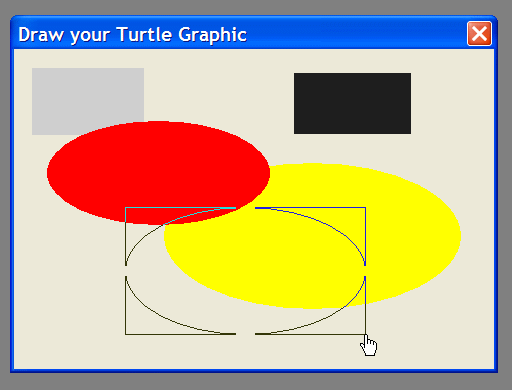

    EZGUI can handle so called "Rubberbanding" for you, like this:



    EZGUI can do rubberbanding for Lines, Rectangles and Ellipses.

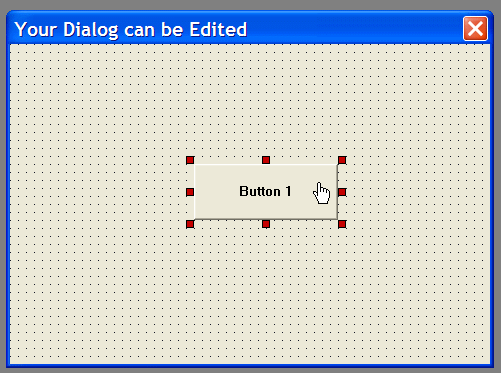

    EZGUI can also handle dragging of controls using the drag handle control like this:



    The Sprite engine allows you to define (and move) non-rectangular images.

    Click this link to see Sprites displayed on a Canvas control as background: http://cwsof.com/screens/draw3.png (image is 222 KB in size)

    Click this link to see Sprites Alphablended to the Canvas background and each other: http://cwsof.com/screens/draw4.png (image is 253 KB in size)
    Chris Boss
    Computer Workshop
    Developer of "EZGUI"
    http://cwsof.com
    http://twitter.com/EZGUIProGuy

    Comment


    • #3
      Custom Draw and Owner Draw

      Custom Draw allows you to easily define the colors and fonts for items in a Listview or Treeview control. The coding is easy.

      Here is the event code for a Custom Draw Listview:

      Code:
                  IF CMsg&=%EZ_NoCustomDraw THEN Cancel&=1
                  IF CMsg&=%EZ_CustomDraw THEN
                      I&=EZ_GetCDrawItem(CVal&, SI&)
                      SELECT CASE SI&
                          CASE 0
                              EZ_SetCDrawItem CVal&, 7, 4,-1
                          CASE 1
                              EZ_SetCDrawItem CVal&, 8, 2,-1
                          CASE 2
                              EZ_SetCDrawItem CVal&, 9, 1,-1
                          CASE ELSE
                              EZ_SetCDrawItem CVal&, 6, 0,-1
                      END SELECT
                  END IF



      Here is the event code for a Custom Draw Treeview:

      Code:
                  IF CMsg&=%EZ_NoCustomDraw THEN Cancel&=1
                  IF CMsg&=%EZ_CustomDraw THEN
                      H&=EZ_GetCDRawItem(CVal&, SI&)
                          SELECT CASE SI&
                              CASE 0
                                  EZ_SetCDrawItem CVal&, 9, 4, -1
                              CASE 1
                                  EZ_SetCDrawItem CVal&, 8, 1, -1
                              CASE 2
                                  EZ_SetCDrawItem CVal&, 7, 2, -1
                              CASE ELSE
                                  EZ_SetCDrawItem CVal&, 6, 0, -1
                          END SELECT
                  END IF




      OwnerDraw allows you to actually draw the items in a Listview control (also Menus, Buttons, ComboBox, Listbox, Tab control support OwnerDraw).


      Here is an OwnerDraw Listview control:

      (Listview 1)




      Another OwnerDraw Listview control:

      (Listview 2)




      The examples above simply show you that draw the control any way you like. You can draw Bitmaps, Text, Shapes, ImageLists, PolyBeziers, even Turtle Graphics, within a Listview item.

      Here is the event code for the ownerdraw listview image above (the second one):

      Code:
                CASE %EZ_OwnerSize
                    EZ_SizeListview CVal&, 4
                CASE %EZ_OwnerDraw
                    EZ_DrawListview "Form1", MyID&, CVal&, 4, 1, MProp$, 3
      This Listview is using the simplified ownerdraw command set. You can fill items with Macros, that will be drawn out using the EZ_DrawListView command. Here is the fill code:

      Code:
      SUB FORM1_LISTVIEW1_Fill(BYVAL Mode&)
           LOCAL R&, C&, Tmp$, T$
           IF Mode&=-1 THEN     ' Initial Data
                FOR R&=0 TO 50     ' Rows
                     FOR C&=0 TO 2     ' Columns
                          Tmp$="Item "+RIGHT$("00"+LTRIM$(STR$(R&)),2)+","+STR$(C&)
                          T$="Item "+RIGHT$("00"+TRIM$(STR$(R&)),2)+","+TRIM$(STR$(C&))
                          SELECT CASE C&
                              CASE 0
                                  Tmp$="<#9>|<#12>|<#14>"
                              CASE 1
                                  Tmp$="{X}|{_}|{X}|"
                              CASE 2
                                  Tmp$="{1}|{2}|{3}|"
                              CASE ELSE
                                  Tmp$=""
                          END SELECT
                          T$=PARSE$(Tmp$, "|", (R& MOD 3)+1)+T$
                          EZ_AddLVItem "Form1", %FORM1_LISTVIEW1, T$, 0, R&, C&, ""
                     NEXT C&
                NEXT R&
           END IF
      END SUB
      Notice the macros embeded in the items. The Macros "{X}" and "{_}" ate for Checkboxes (checked and unchecked). The Macros "<#9>" and "<#12>" are for color boxes (the # is an EZGUI color index number).

      If you want to get more low level to draw the items, then you can use lower level OwnerDraw commands. The first OwnerDraw Listview above does this.

      Here is the draw code for the first ownerdraw Listview above:

      Code:
      SUB SizeListViewItem(BYVAL CID&, BYVAL CVal&)
      LOCAL W&, H&, Item1&, Item2&, NW!, NH!
      IF EZ_StartOwnerSize(CVal&, W&, H&, Item1&, Item2&) THEN
          EZ_GetTextSize 7, "XXX", NW!, NH!,0
          H&=INT(NH!*1.5)
          EZ_EndOwnerSize CVal&, W&, H&
      END IF
      END SUB
      '
      '
      SUB DrawListviewItem(BYVAL CID&, BYVAL CVal&)
      LOCAL hMyDC&, X2&, Y2&, IsSel&, IsGry&, IsDis&, IsChk&, IsFoc&, IsDef&
      LOCAL X1&, Y1&, Item1&, IsEdit&, SubItem&, SubItem2&, CP$
      LOCAL SX1&, SY1&, SX2&, SY2&, CW&, AW!, AH!
      LOCAL IText$, IPictNum&, LVProp$
      IF EZ_StartOwnerDraw(CVal&, hMyDC&, X2&, Y2&, IsSel&, IsGry&, IsDis&, IsChk&, IsFoc&, IsDef&) THEN
          EZ_GetODItem CVal&, X1&, Y1&, Item1&, IsEdit&
          CP$=EZ_GetLVColOrder("Form1", CID&,3)
          IF Item1&>=0 THEN
              SX1&=0
              EZ_SaveState
              FOR SubItem&=0 TO 2
                  CW&=EZ_GetLVColWidth("Form1", CID&, SubItem&)
                  SX2&=SX1&+CW&-1
                  IF IsSel& THEN
                      EZ_Color 15, 9
                  ELSE
                      IF (SubItem& MOD 2)=1 THEN
                          EZ_Color 0, 31
                      ELSE
                          EZ_Color 0, 23
                      END IF
                  END IF
                  EZ_DCDraw  hMyDC&, %EZ_FILL, SX1&, Y1&, SX2&, Y2&, 1, 1
                  EZ_SaveState
                  IF IsSel& THEN EZ_Color 0,0
                  EZ_DCDraw  hMyDC&, %EZ_LINE, SX2&, Y1&, SX2&, Y2&, 1, 0
                  EZ_DCDraw  hMyDC&, %EZ_LINE, SX1&, Y2&, SX2&, Y2&, 1, 0
                  EZ_RestoreState
                  IF (SX2&-SX1&)>18 THEN
                      EZ_DCDraw  hMyDC&, %EZ_CHECK_1, SX1&+2, Y1&+2, SX1&+16, Y2&-2, 1, 0
                  END IF
                  EZ_UseFont 7+SubItem&     ' use different fonts
                  SubItem2&=VAL(PARSE$(CP$,"|",SubItem&+1))   ' get actual column
                  IF EZ_GetLVItem("Form1", CID&, IText$, IPictNum&, Item1&, SubItem2&, LVProp$ ) THEN
                      EZ_GetTextSize 7+SubItem2&, IText$, AW!,AH!,0
                      IF AW!>CW& THEN
                          EZ_SetPrintFormat 2, SX2&, Y2&, %EZ_LEFT OR %EZ_VCenter, 0
                      ELSE
                          EZ_SetPrintFormat 2, SX2&, Y2&, %EZ_CENTER OR %EZ_VCenter, 0
                      END IF
                      EZ_DCPrint hMyDC&, SX1&+20,Y1&, IText$
                  END IF
                  SX1&=SX2&+1
              NEXT SubItem&
              EZ_RestoreState
              EZ_SetPrintFormat 0,0,0,0,0
          END IF
          EZ_EndOwnerDraw
      END IF
      END SUB
      Here is the event code for that Listview:

      Code:
                  IF CMsg&=%EZ_OwnerSize THEN
                      SizeListViewItem CID&, CVal&
                  END IF
                  IF CMsg&=%EZ_OwnerDraw THEN
                      DrawListviewItem CID&, CVal&
                  END IF
      Whether using the higher level Simplified OwnerDraw command set or the lower level OwnerDraw command set, you can customize the look of your controls in a variety of ways.
      Chris Boss
      Computer Workshop
      Developer of "EZGUI"
      http://cwsof.com
      http://twitter.com/EZGUIProGuy

      Comment


      • #4
        Buttons, Buttons, Buttons !

        EZGUI Provides three sets of 3D colored buttons in the Visual Designer. One is built in and the other two are implimented via plugins. You can use one set per project.

        Here are the built in (default) 3D Buttons:




        Here is the same buttons using the first Button Plugin:




        Here is the same buttons using the second Button Plugin:




        Buttons can be any color, can use a Rounded Rectangle region or an Elliptical region. You can even write your own button plugin to customize your own set of buttons for use in the Designer.

        How do the plugins work ?

        You write your own replacement routines for the following commands in EZGUI:

        EZ_Draw3DButton
        EZ_Draw3DButtonE
        EZ_Draw3DButtonRR

        and put them in an include file. You use the lower level OwnerDraw command set in EZGUI to do this (no API needed).

        Next you write a Plugin, which is simply a standard DLL using the template provided. The plugin will provide the necessary info to the Designer about code generation and it will do the actual drawing of the buttons for the design. You simply call the routines you wrote in your include file.

        Here is a code plugins code (the DLL, not the actual drawing include which you would write):

        Code:
        ' -------------------------------------------------------------------------------------------
        '                        Button Plugin (Type 3)
        '                        This plugin is called when a
        '                        a OwnerDraw Button is to be drawn.
        '
        '                        Plugins should be copied to plugins folder !
        '                        Change Plugin file extension to .ezp (instead of .dll)
        '
        ' -------------------------------------------------------------------------------------------
        ' -------------------------------------------------------------------------------------------
        '                        Copyright Christopher R. Boss, 2006
        '                               Alls Rights Reserved
        '               The code may be used ROYALTY FREE by registered EZGUI 4.0 users !
        ' -------------------------------------------------------------------------------------------
        #DIM ALL
        #DEBUG ERROR OFF
                                    ' Plugin can have any name, but must hav extension.ezp
        #COMPILE DLL                ' once compiled change .DLL extension to .EZP
        #INCLUDE "..\includes\ezgui40.inc"
        #INCLUDE "drawbtn.inc"
        GLOBAL DLL_Instance&
        ' -------------------------------------------------------------------------------------------
        '                              DLL Entrance - LibMain
        ' -------------------------------------------------------------------------------------------
        FUNCTION LIBMAIN(BYVAL hInst   AS LONG, _
                         BYVAL RFlag   AS LONG, _
                         BYVAL lpR     AS LONG) AS LONG
            SELECT CASE RFlag
                CASE 1      ' (Where DLL starts)
                    DLL_Instance&=hInst
                CASE 0      ' (Where DLL exits)
                CASE ELSE
            END SELECT
            LIBMAIN=1
        END FUNCTION
        ' -------------------------------------------------------------------------------------------
        '                              EZGUI 3.5 PlugIn Calls
        ' -------------------------------------------------------------------------------------------
        FUNCTION EZ_PLUGIN_INIT(PType&) EXPORT AS STRING
            ' ----------------------------------------
            ' This function is called once to Initialize
            ' the PlugIn. Return the PlugIn name.
            ' If NULL string returned, PlugIn fails to
            ' Initialize.
            ' ----------------------------------------
            PType&=3        ' Button Plugin
            ' ---------------------------
            FUNCTION="EZGUI 3D Button-A"
        END FUNCTION
        SUB EZ_PLUGIN_DRAWBUTTON (BYVAL FormName$, BYVAL CID&, BYVAL CVal&, BYVAL BGColor&, BYVAL FGColor&, BYVAL FontN&, BYVAL RType&) EXPORT
            ' ----------------------------------------
            ' This sub is called when a button is to be drawn.
            ' FormName$ is Buttons parent form name
            ' CID& is Buttons ID number
            ' CVal& is CVal& of %EZ_OwnerDraw event
            ' BGColor& is EZGUI background color number
            ' FGColor& is EZGUI foreground (text) color number
            ' FontN& is EZGUI Font number
            ' RType& is buttons region Type (0 - none, 1 - ellipse, -2 - Rounded Rectangle
            '    EZGUI generates the region code for you ! Just draw based on the region type.
            ' ----------------------------------------
            SELECT CASE RType&
                CASE 1
                    DrawMyButtonE FormName$, CID&, CVal&, BGColor&, FGColor&, FontN&
                CASE -2
                    DrawMyButtonRR FormName$, CID&, CVal&, BGColor&, FGColor&, FontN&
                CASE ELSE
                    DrawMyButton FormName$, CID&, CVal&, BGColor&, FGColor&, FontN&
            END SELECT
        END SUB
        FUNCTION EZ_PLUGIN_DRAWCODE(BYVAL IData$, BYVAL Mode&, BYVAL RType&) EXPORT AS STRING
            LOCAL RV$, Q$, CRLF$, INC_Path$
            IF Mode&=0 THEN
                IF RIGHT$(IData$,1)<>"\" THEN IData$=IData$+"\"
                INC_Path$=IData$        '   IData$ passes path to Designer (mode=0)
                                        '   Designer stores inc files in subfolder named   : includes
                                        '   Designer stores plugin files in subfolder named: plugins
            END IF
            ' Mode&=0 if the code is the include statements after all other includes.
            ' Mode&=1 if the code is the actual draw code used in the Buttons %EZ_OwnerDraw event
            Q$=CHR$(34)
            CRLF$=CHR$(13)+CHR$(10)
            SELECT CASE Mode&
                CASE 0      ' return include code for drawing code
                    RV$="#INCLUDE "+Q$+INC_Path$+"plugins\drawbtn.inc"+Q$+CRLF$
                CASE 1      ' return name of draw routine only (no CRLF or parameters)
                            ' EZGUI assumes the parameters for your drawing sub are:
                            ' BYVAL FormName$, BYVAL CID&, BYVAL CVal&, BYVAL BGColor&, BYVAL FGColor&, BYVAL FontN&
                            ' which are identical to the EZGUI Button drawing commands
                    SELECT CASE RType&
                        CASE 1
                            RV$="DrawMyButtonE"
                        CASE -2
                            RV$="DrawMyButtonRR"
                        CASE ELSE
                            RV$="DrawMyButton"
                    END SELECT
                CASE ELSE
            END SELECT
            FUNCTION=RV$
        END FUNCTION
        You can create all sorts of 3D Button Plugins for your development.

        EZGUI comes with 2 plugins already, but you can write your own or simply modify the existing plugins and create new ones.

        Here is the code for one of the plugins that come with EZGUI 4.0 Pro:

        Code:
        ' -------------------------------------------------------------------------------------------
        '                        Copyright Christopher R. Boss, 2006
        '                               Alls Rights Reserved
        '               The code may be used ROYALTY FREE by registered EZGUI 4.0 users !
        ' -------------------------------------------------------------------------------------------
        SUB DrawMyButtonX(FormName$, CID&, CVal&, BGColor&, FGColor&, FontN&, BYVAL RType&)
        LOCAL hMyDC&, X2&, Y2&, IsSel&, IsGry&, IsDis&, IsChk&, IsFoc&, IsDef&
        LOCAL T$, LW&, C&, CL&, YOffset&, FC&, XOffset& ,  MObj&, LFlag&, LC&
        IF EZ_StartOwnerDraw(CVal&, hMyDC&, X2&, Y2&, IsSel&, IsGry&, IsDis&, IsChk&, IsFoc&, IsDef&) THEN
            YOffset&=Y2&/4
            XOffset&=X2&/4
            IF XOffset&>=YOffset& THEN
                XOffset&=YOffset&
            ELSE
                YOffset&=XOffset&
            END IF
            IF RType&=-2 THEN EZ_DefCorner -1
            EZ_SaveState
            EZ_SaveColors 96, 99
            C&=EZ_ColorVal(BGColor&,0)
            IF IsFoc& THEN
                C&=EZ_AverageColor(C&, RGB(255,255,255))
            ELSE
                C&=EZ_AverageColor(C&, RGB(220,220,220))
            END IF
            EZ_DefColorL 96, EZ_AverageColor(C&, RGB(32,32,32))
            EZ_DefColorL 97, C&
            EZ_DefColorL 98, RGB(255,255,255)
            EZ_DefColorL 99, EZ_AverageColor(C&, RGB(255,255,255))
            IF IsSel& THEN
                EZ_Color 0,97
                EZ_DCDraw hMyDC&, %EZ_FILL, 0, 0, X2&,  Y2&, 0, 1
                EZ_Color 97,-1
            ELSE
                EZ_Color 98,97
                EZ_DCDrawGradient hMyDC&, 0, 1,  X2&,  2*YOffset&, 2
                EZ_Color 0,97
                EZ_DCDraw hMyDC&, %EZ_FILL, 0, 2*YOffset&+1, X2&,  Y2&-YOffset&-1, 0, 1
                EZ_Color 97,96
                EZ_DCDrawGradient hMyDC&, 0, Y2&-YOffset&,  X2&,  Y2&, 2
                EZ_Color 98,97
                EZ_UseGradientAngle 1
                EZ_DCDrawGradient hMyDC&, 1, 0, 2*XOffset&,  Y2&, 0
                EZ_Color 96, 97
                EZ_UseGradientAngle 1
                EZ_DCDrawGradient hMyDC&, X2&-(2*XOffset&), 0, X2&,  Y2&, 1
                EZ_Color 97,-1
            END IF
            SELECT CASE RType&
                CASE 1
                    EZ_DCDraw hMyDC&, %EZ_ELLIPSE, 0, 0, X2&,  Y2&, 1, 0
                CASE -2,2
                    EZ_DCDraw hMyDC&, %EZ_RRECT, 0, 0, X2&,  Y2&, 1, 0
                CASE ELSE
                    EZ_DCDraw hMyDC&, %EZ_RECT, 0, 0, X2&,  Y2&, 1, 0
            END SELECT
            IF IsFoc& THEN
                EZ_Color 99,-1
                SELECT CASE RType&
                    CASE 1
                        EZ_DCDraw hMyDC&, %EZ_ELLIPSE, 2, 2, X2&-2,  Y2&-2, 1, 0
                    CASE -2,2
                        EZ_DCDraw hMyDC&, %EZ_RRECT, 2, 2, X2&-2,  Y2&-2, 1, 0
                    CASE ELSE
                        EZ_DCDraw hMyDC&, %EZ_RECT, 2, 2, X2&-2,  Y2&-2, 1, 0
                END SELECT
            END IF
            EZ_Color FGColor&,-1
            EZ_UseFont FontN&
            T$=EZ_GetText(FormName$, CID&)
            T$=EZ_GetText(FormName$, CID&)
            MObj&=EZ_GetDrawMacro(T$)
            IF MObj&<>0 THEN
                EZ_DCDrawMacro hMyDC&, MObj&, 0, 0, X2&, Y2&, FGColor&, 97
            ELSE
                LFlag&=EZ_CheckLight(T$, LC&)
                EZ_SetPrintFormat 2, X2&, Y2&, %EZ_Center OR %EZ_VCenter, 0
                EZ_DCPrint hMyDC&, 0,0, T$
                EZ_SetPrintFormat 0,0,0,0,0
                IF LFlag& THEN
                    EZ_DCDrawLight hMyDC&, 0, 0, X2&, Y2&, LC&
                END IF
            END IF
            EZ_RestoreColors
            EZ_RestoreState
            IF RType&=-2 THEN EZ_DefCorner -2   ' restore
            EZ_EndOwnerDraw
        END IF
        END SUB
        SUB DrawMyButton(BYVAL FormName$, BYVAL CID&, BYVAL CVal&, BYVAL BGColor&, BYVAL FGColor&, BYVAL FontN&)
            DrawMyButtonX FormName$, CID&, CVal&, BGColor&, FGColor&, FontN&, 0
        END SUB
        SUB DrawMyButtonE(BYVAL FormName$, BYVAL CID&, BYVAL CVal&, BYVAL BGColor&, BYVAL FGColor&, BYVAL FontN&)
            DrawMyButtonX FormName$, CID&, CVal&, BGColor&, FGColor&, FontN&, 1
        END SUB
        SUB DrawMyButtonRR(BYVAL FormName$, BYVAL CID&, BYVAL CVal&, BYVAL BGColor&, BYVAL FGColor&, BYVAL FontN&)
            DrawMyButtonX FormName$, CID&, CVal&, BGColor&, FGColor&, FontN&, -2
        END SUB
        While the code above for the plugins is Copyrighted, it can be used Royalty free by licensed users.
        Chris Boss
        Computer Workshop
        Developer of "EZGUI"
        http://cwsof.com
        http://twitter.com/EZGUIProGuy

        Comment


        • #5
          One of the tough things to do with a 3D Button control is to calculate a set of colors for the image based on a single background color provided by the Designer.

          Notice in the code above, EZGUI provides a command:

          EZ_AverageColor

          This command can be used with a single background color and a set of gray shades (the R,G,B values are all the same) to generate a whole set of colors within a specific color scheme.

          EZGUI also provides the:

          EZ_DCDrawGradient command for draw all sorts of Gradients which are perfect for drawing 3D Buttons.

          Two other commands:

          EZ_DCDrawMacro
          EZ_DCDrawLight

          commands give you the ability to support the 3D Button Macro Builder in the Designer.


          The beauty of all of this is that you can work visually with all these 3D Buttons in the Designer and it benefits from the integrated Graphics engine built into EZGUI.

          Even if another Designer supported OwnerDraw like EZGUI, EZGUI currently is the only one that comes with a completely integrated Graphics engine.

          This is why a completely Integrated GUI engine (and designer) provides more options than other tools which are not.
          Chris Boss
          Computer Workshop
          Developer of "EZGUI"
          http://cwsof.com
          http://twitter.com/EZGUIProGuy

          Comment


          • #6
            Sale extended to July 27, 2008!

            This sale has been extended to July 27, 2008.

            Act quickly before the sale is over.
            Chris Boss
            Computer Workshop
            Developer of "EZGUI"
            http://cwsof.com
            http://twitter.com/EZGUIProGuy

            Comment


            • #7
              Only 3 1/2 days left for this sale, so act now.
              Chris Boss
              Computer Workshop
              Developer of "EZGUI"
              http://cwsof.com
              http://twitter.com/EZGUIProGuy

              Comment


              • #8
                The built-in Canvas control is integrated into the main runtime and it allows you to build your own Graphic viewport for applications.

                It is a real control (no limit on how many you use).

                It is fully supported by the built-in graphics engine so you can draw all sorts of things.

                It even has its own Sprite engine which allows you to animate the control, by adding movable, non-rectangular bitmaps (define a transparent color).

                The most powerful feature is the alphablending feature for Sprites.

                Here is an example:

                Chris Boss
                Computer Workshop
                Developer of "EZGUI"
                http://cwsof.com
                http://twitter.com/EZGUIProGuy

                Comment


                • #9
                  Some lesser known Graphic features of EZGUI 4.0 pro

                  Here are some interesting Graphic features in EZGUI that demonstrate the extent of its command set.

                  Creating unique Fonts couldn't be easier. EZGUI removes the complexities of the API to make font definition as easy as possible.

                  For example, lets create a new font:

                  EZ_DefFont 9, "Arial Black", 12.5, "VBI{90}[50%]"

                  Let's look at the parameters for the EZ_DefFont command:

                  9 - this is an EZGUI font index number so you can reference the font later

                  "Arial Black" - Font Face name

                  12.5 - Font size in Points (can be a decimal value) (a point is 1/72 of an inch)

                  "VBI{90}[50%]" - property string.

                  The property string means the following:

                  V - Variable width font
                  B - Bold
                  I - Italic
                  {90} - 90 degree rotation
                  [50%] - force width to 50% of the height




                  Here are some interest Graphic orientated commands:

                  EZ_AverageColor C1&, C2&

                  This command takes two RGB color values and combines them using an average (blending the colors). This is very useful when using the system colors to create shades of the system colors. I like to use this when using ownerdraw.


                  N& = EZ_GetBestColorMatch (C&, N1&, N2&)

                  This command takes an RGB color value (C&) and then scans all the existing EZGUI colors from index N1& to N2& to find the closest match. This is useful when matching colors from an external source to find the closest one within a predefined palette of colors.

                  C! = EZ_ScaleToCharSize (V!, Mode$)

                  EZGUI uses a character based coordinate system. A character is the size of the default system font. This command allows you to convert the following coodinate systems to EZGUI character units:

                  Twips
                  Pixels
                  Inches

                  EZGUI can also easily convert back and forth between pixels and character units using the functions EZ_X, EZ_Y, EZ_CX, EZ_CY .


                  Here is a very useful coordinate command:

                  NewMousePos& = EZ_ConvertMousePos (hWnd1&, hWnd2&, lParam&)

                  Windows often passes the mouse coordinates in the lParam value of many messages. Both the X and Y values are combined in one long value. EZGUI events use a similiar way of passing the mouse coordinate. This command allows you to easy convert such an x,y coordinate from one windows client area to anothers.

                  To get the x,y values from a single long value, you can use the command:

                  EZ_GetMouseXY MousePos&, X&, Y&


                  EZGUI can load icons, cursors and bitmaps from disk files. Rather than have to use a full path for every such command you use in your app, you can use the command:

                  EZ_DefImageFolder F$


                  F$ can be either a full path (ie. "c:\somefolder") or simply a single folder name (ie. "graphics") and EZGUI will append the folder name to the applications path to create a full path, whch is a subfolder off the apps folder.

                  Now when ever you use an EZGUI command to load an icon, cursor or bitmap, you need only pass the function the filename. EZGUI will append the defined image folder path to the filename for the full path.

                  ie.

                  P$=EZ_LoadPicture("mybitmap.bmp")

                  No need for a full path here.


                  A very useful command for calculating the end points of a line is:

                  EZ_CalcPoint X1&, Y1&, Length&, Degrees&, X2&, Y2&

                  You define the beginning point (X1&, Y1&), the length and degrees of the the line from that point and EZGUI returns the end point in X2&, Y2&.


                  EZGUI can draw a Polygon with the EZ_DCDraw, EZ_CDraw and EZ_LDraw command. Those commands do the drawing, but another command defines the actual polygon. EZGUI uses a relative coordinate system fro defining polygons. Meaning you don't define a unique array of points every time you want to draw a new polygon. EZGUI uses a relative box to define the polygon which is a 1 x 1 box. You define the polygon using coordinates which are decimal values within that box.

                  ie.

                  EZ_DefPoly "(0,0)(1,0)(.5,1)(0,0)"

                  This defines an upsidedown triangle. The first coordinate is the top,left corner (0,0), The second is the top, right corner (1,0). The third is at the bottom of the area, but half way across (.5,1) and the last one is back to the beginning. This is an upsidedown triangle.

                  Now when the polygon is to be drawn using the other commands noted above, you will define a rectangular area to draw it in. EZGUI will then scale the polygon to the rectangle and autogenerate the correct points.

                  This means you can define a shape using relative coordinates and then it can be drawn, over and over again in different areas and sizes without having to manually calculate the new coordinates.


                  Some other interesting features are:

                  You can create blank Bitmaps in memory and then draw in them using the entire graphics engine. You can even create blank DIB sections and either draw in them using the graphics engine or directly access the pixel data via pointers (no need to GET/PUT data to a buffer and back).

                  When printing to the printer, EZGUI automatically creates an abort print job dialog for you and displays it. If you want you can hide it.

                  EZGUI allows you to use a Canvas control, instead of a printer so you can create your own Print Preview routines. The Canvas will accept the actual printer code for a single page (and ignore the rest).

                  EZGUI has the ability to autogenerate a region for the current image of a Canvas control. You simply tell EZGUI what color is the transparent color and then it will generate a region for the current image and apply that region to the Canvas control. This makes the Canvas control non-rectangular, based on the bitmap image in it.
                  Chris Boss
                  Computer Workshop
                  Developer of "EZGUI"
                  http://cwsof.com
                  http://twitter.com/EZGUIProGuy

                  Comment


                  • #10
                    Sale is now over !

                    Thanks to those who ordered.
                    Chris Boss
                    Computer Workshop
                    Developer of "EZGUI"
                    http://cwsof.com
                    http://twitter.com/EZGUIProGuy

                    Comment

                    Working...
                    X
