DashBoard (GDImage Widget)

[Patrice Terrier]

For those wanting to try it, you can download the GDImage 5.00 DashBoard Widget project there

Note: Before you can run the demo, you must install the provided True Type Font:

1. EARTH.TTF
2. LCD-U__.TTF

[Patrice Terrier]

I have updated the ZIP file to perform a smoother simulation.

The source code of this project will be provided with any order of GDImage 5.00.

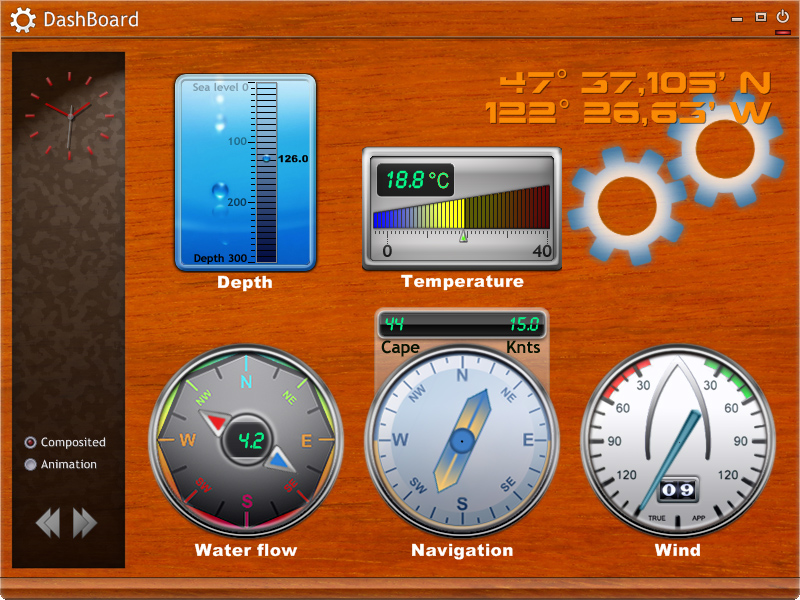

Screen shot of the photo-realistic DashBoard widget project:



...

[Patrice Terrier]

Custom (hyper-realistic widget control)

The Custom project, shows you how to create a "hyper-realistic" GDImage widget compass control.

It mixes 2D and 3D altogether, with the hability to change the lens layer on the fly.
All the layers are linked together to work as a single entity, you can see it using the mouse to drag the compass and/or using the keyboard with the direction keys.

The widget itself is composed of 4 layers, including one OpenGL 3D sphere animation.

All the visual parameters can be adjusted using the sliders located on the right panel.

Note: you must have a graphic card that is OpenGL 2.00+ compatible to run this project.

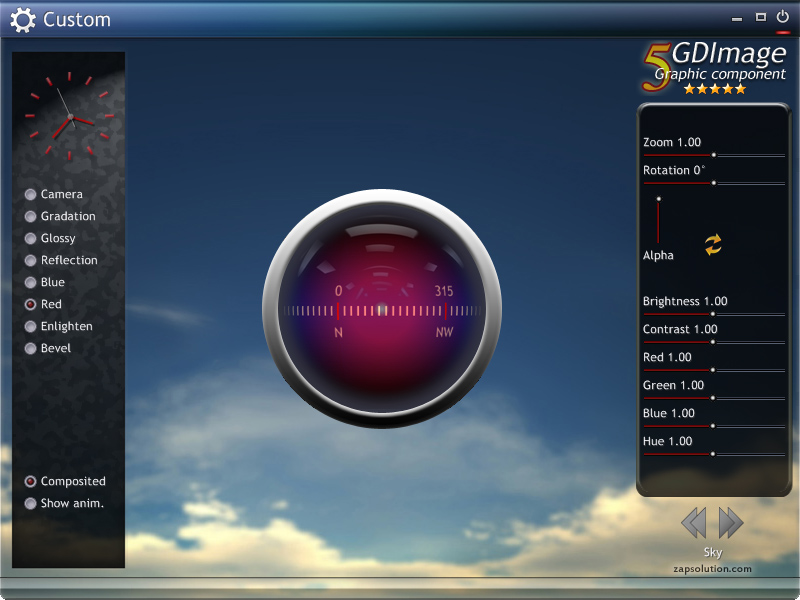

Screen shot:




Complete ZIP file available on the dedicated GDImage forum there

...
